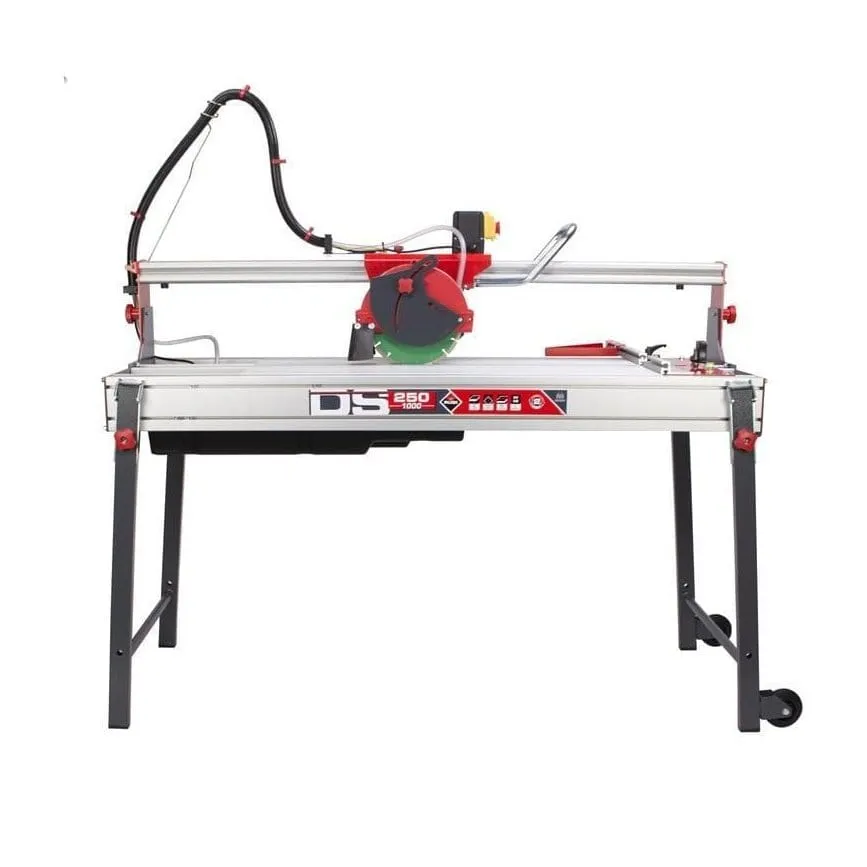

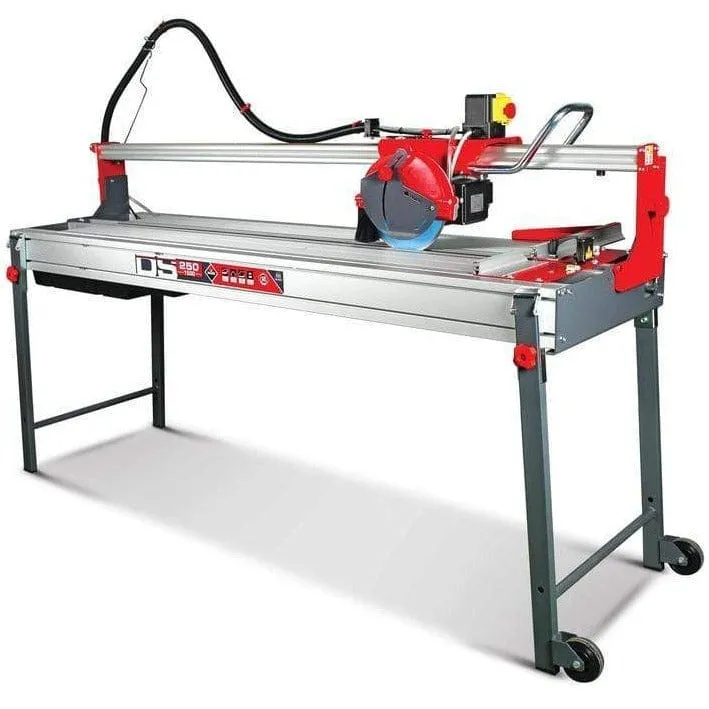

RUBI offers the professional its range of DS-250-N Laser&level electric cutters and miter saws. A range of cutters with highly accurate mobile heads that are ideal for miter cuts.
Its powerful 3 hp motor makes the DS-250-N Laser&Level range by RUBI ideal for cutting and mitering of all types of ceramic tiles and especially porcelain tiles. Of course, the DS-250-N is also an ideal solution for cutting natural stones such as marble, granite, slate, etc.
Features
- Extruded aluminium tables, removable for easy cleaning of the machine.
- With thermal and overload security switches. Except for three-phase motors.
- Blade cooling by water pump with regulating tap
- Diamond blade Ø 250mm not included.
- With a double set of flanges, one specially designed for miter cuts.

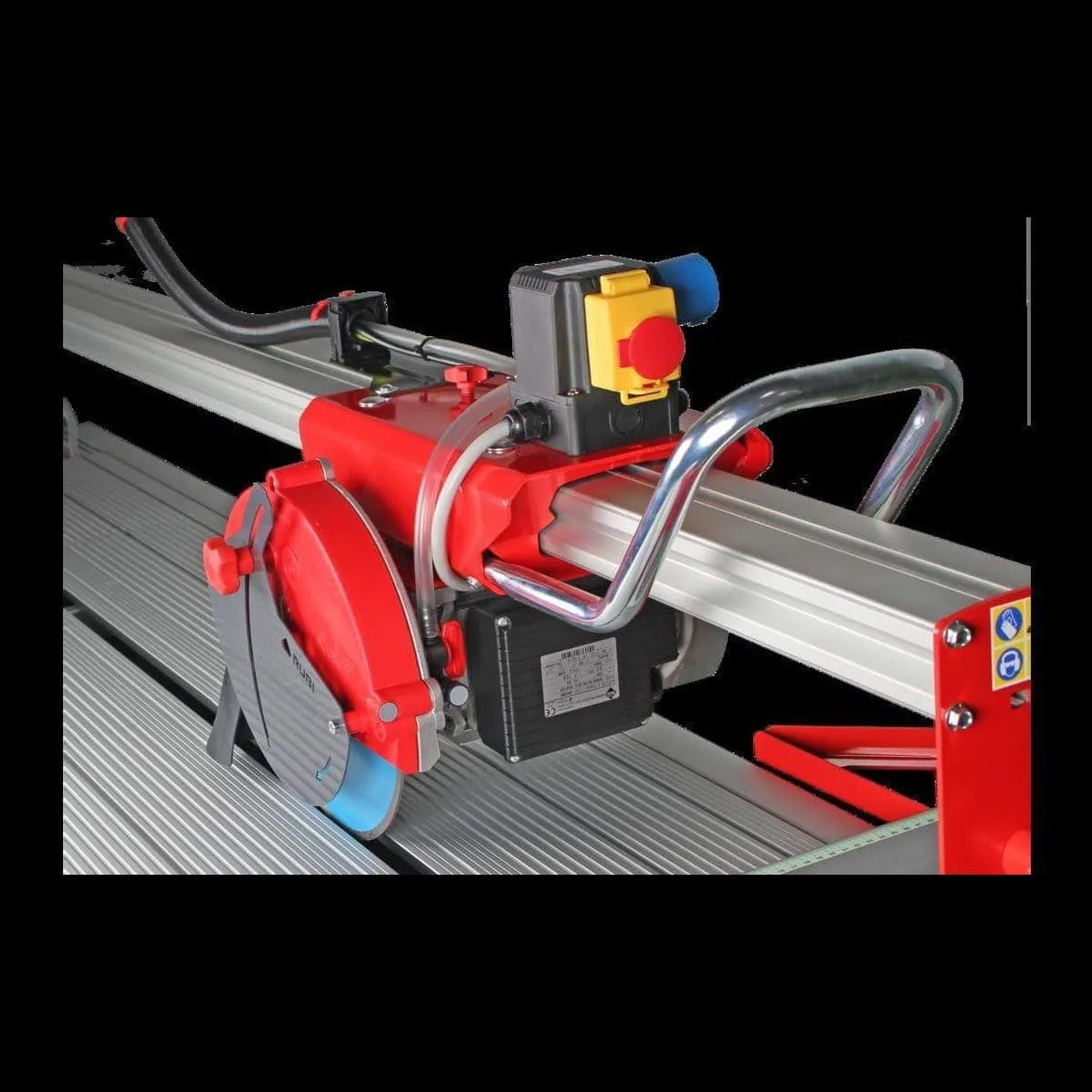

- Motor assembly mounted on sliding bearings and foldable for maximum accuracy miter cuts.
- Safety protector for segmented blades.
- With a lateral stop for repetitive cuts.
- Retractile legs with “shield” function and wheels for transportation.
- Removable water tank system.
- 2mW line laser.
- Circular level for easy field installation.
- Machine supplied without cable (Remember to include the cable in your order).
- It comes with the new ZERO DUST system mounted, as well as a second set of standard splash skirt.
- For Wall tiles, Floor tiles, Porcelain tiles, Marble, Granite and other materials.
- Cutting length – 102 cm
- Diagonal cutting length – 72×72 cm
- Cutting height – 51 mm
- Mitre cutting length – ∞ cm
- Miter Thickness cut – 25 mm
- Power supply – 230V-50Hz
- Revolutions per minute – 2800
- Outside diameter – 250 mm
- Inside diameter – 25,4 mm
- Length Width Height (machine overall dimensions) – 170x86x127 cm
