- High-Power Output: Equipped with metal gears, this servo motor delivers high-torsion output, ensuring robust and long-lasting performance in mechanical equipment applications.
- Superior Stability: Designed for stability, the robot servo motor can reliably control the steering gear within a safe torsion range, even if the blows, ensuring uninterrupted operation.
- Wide Compatibility: The servo motor is perfectly compatible with popular remote systems like Futaba, JR, Hitec, and more, providing flexible integration options for various control setups.
- Versatile Applications: Ideal for use in robots, robotic arms, production lines, and camera pan-tilt control robots, this servo motor offers versatility and precision in a wide range of applications.
- Easy Installation: The D-hole anti-skid key connection on the servo arm plate ensures compatibility with the ASMC ASME servo axle, simplifying the installation process.
Spec:

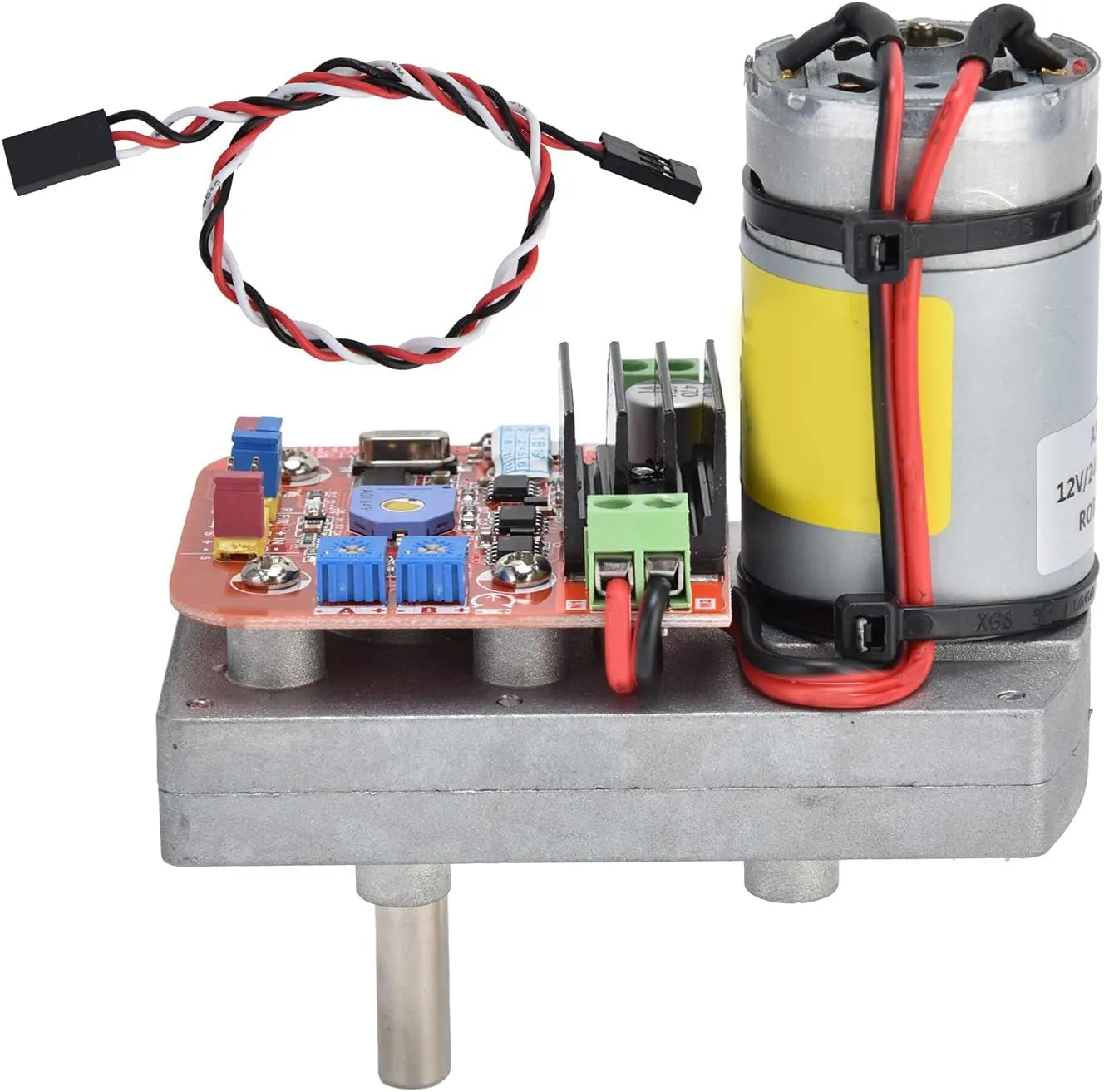

Item Type: Robotic Servo Motor
Material: Aluminum Alloy
Maximum Torsion: 380kg.cm (24V) (Actual Measurement, Not Theoretically Calculated Value)
3648N.cm(24V) (Actual Measurement, Not Theoretically Calculated Value)
190kg.cm(12V) (Actual Measurement, Not Theoretical Calculation Value)
1824N.cm(12V) (Actual Measurement, Not Theoretically Calculated Value)
Angular Speed: 0.5s/60°(0.5s is Needed for 60°Rotation), at 24V;
1.0s/60°(1.0s is Required for 60°Rotation), at 12V;
Rotation Angle: 300°Maxium
Input Mode: Pulse (Remote Control, Multi-Channel Steering Gear Controller, Single-Chip Microcomputer) or Analog Voltage (Potentiometer)
Pulse Input Range: 0.5ms-2.5ms Suitable for All Multi-Channel Steering Gear Controllers, 1ms-2ms Model Airplane Remote Control, MCU Programming, Etc.;
Voltage Input Range: 0V to 5V
Control Accuracy: 0.32°
Rated Voltage: 12V~24V/DC (11V/Minium~30V/Maxium, Limit Voltage)
No-Load Current: 500mA (Current Limit: 5A, Recommended to Use A Switching Power Supply or Battery Greater than 5A)
Limit Angle: ±150° or 0°~300°(Maxium) The Steering Gear Has Electronic Limit Adjustment
Analog Voltage Mode: 0V-5V Input Voltage (0.22V Corresponds to 0°, 4.78V Corresponds to 300°)
Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
Weight: Approx. 550g / 19.4oz
Dimension Size: Approx. 95 x 60 x 110mm / 3.7 x 2.3 x 4.3in
Mechanical Life:>1,000000 Cycles/Full Load (Conservative Value)
Limit Parameters
Limit Voltage: 11V-30V/DC(Maxium)
Current Limit Value: 5A±0.2A(Maxium)
Working Angle: ±150° or 0°~300°(Maxium)
RC Mode: 1ms Pulse Mode: 1ms~2ms (Pulse Width)/50Hz~333Hz (Frequency)
2ms Pulse Mode: 0.5ms~2.5ms (Pulse Width)/50Hz~333Hz (Frequency)
PackageList:
