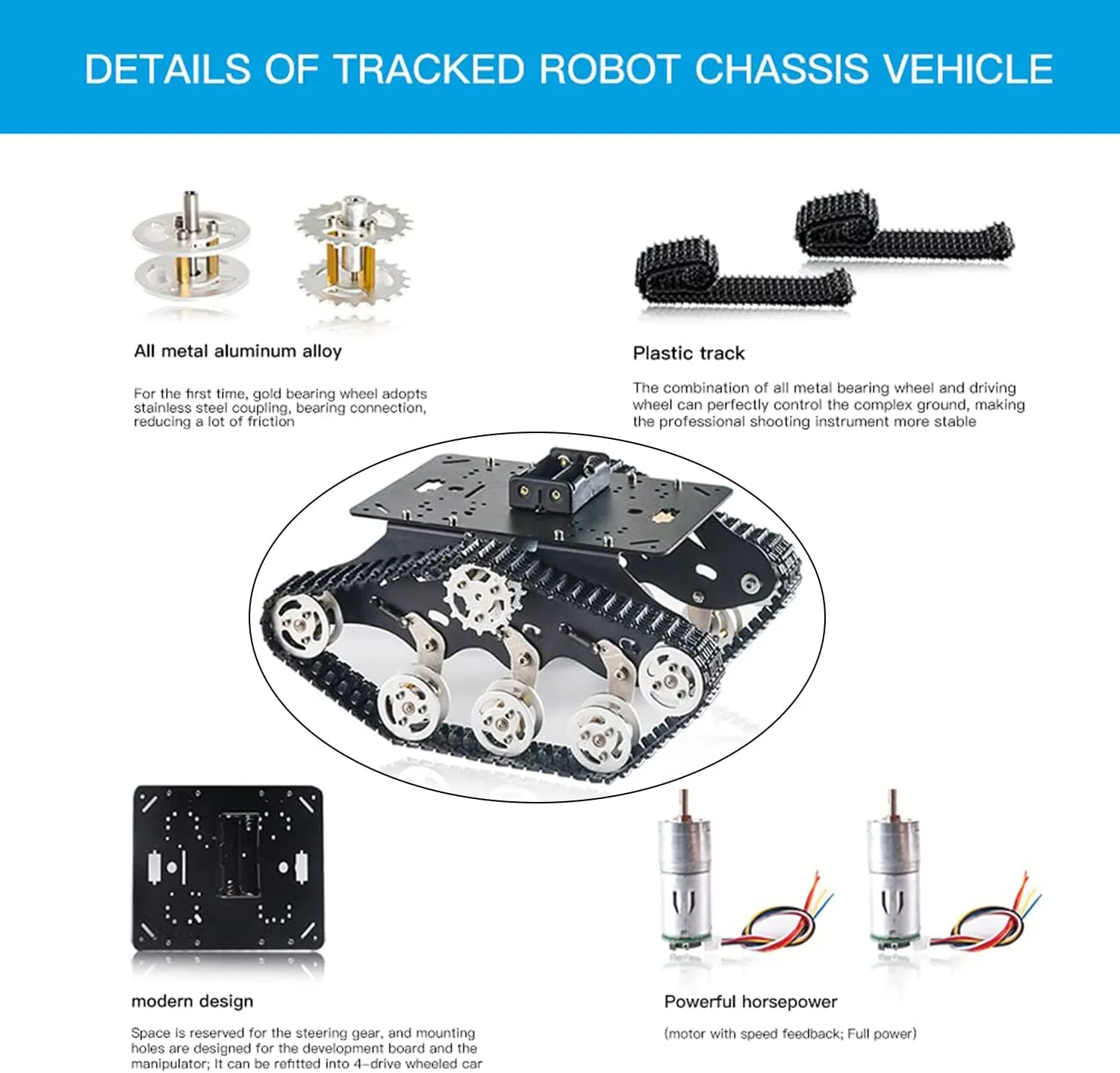

- 【Robot Tank Chassis】: You will get: a set of metal kit including 3 parts, 2pcs engineering plastic tracks, 2pcs high torque encoder DC motor, 2pcs driving wheels, 10pcs bearing wheels and screw kits. Note: It is unassembled for shipping convenience! It is not difficult to install, just need your patience by the help of the manual.
- 【Suspension System Design】: This robot tank car chassis is designed with shock absorption. Thus, this tank chassis can easily avoid some obstacles, e.g., crushed stones. So many people use this robot tank chassis (model: TS300) for VR/AR, video monitor, and other applications.
- 【High Torque DC Motor】: Motor is the core for the tank chassis. 2pcs high torque encoder DC motor is used for this robot tank car chassis TS300. One can get the speed feedback by the Arduino UNO R3 / Raspberry pie / Micro-bit programming.
- 【DIY RC Model】: This smart robot tank car chassis is very suitable for the maker, school students for robot learning, STEAM education, teaching, competition. One can DIY a robotic tank car model by PS2 or Bluetooth. We provide the source code based on Arduino controller kit.
- 【Flexible Design】: This tank car chassis is exquisitely designed.. 1) The length of track can be adjustable by the requirements. Since different people needs different length of track or for the backup. We will provide much tracks. 2) The tank car chassis is metal, and the load wheel is equipped with bearings to reduce the friction.
Product Application
- Competition;
- Graduation design;
- The engineering prototype;
- Robot project;
- DIY creations
TS300 Tank Chassis Parameters
- Name: TS300 shock-absorbing tank chassis
- Material: Aluminum alloy
- Surface: sandblasted
- Color: Black
- Tracks: engineering plastics,
- Drive wheel: aluminum alloy
- Weighing wheel: aluminum alloy
- Track width: 40mm/1.57in
- Weight: 1.1kg/2.43lb

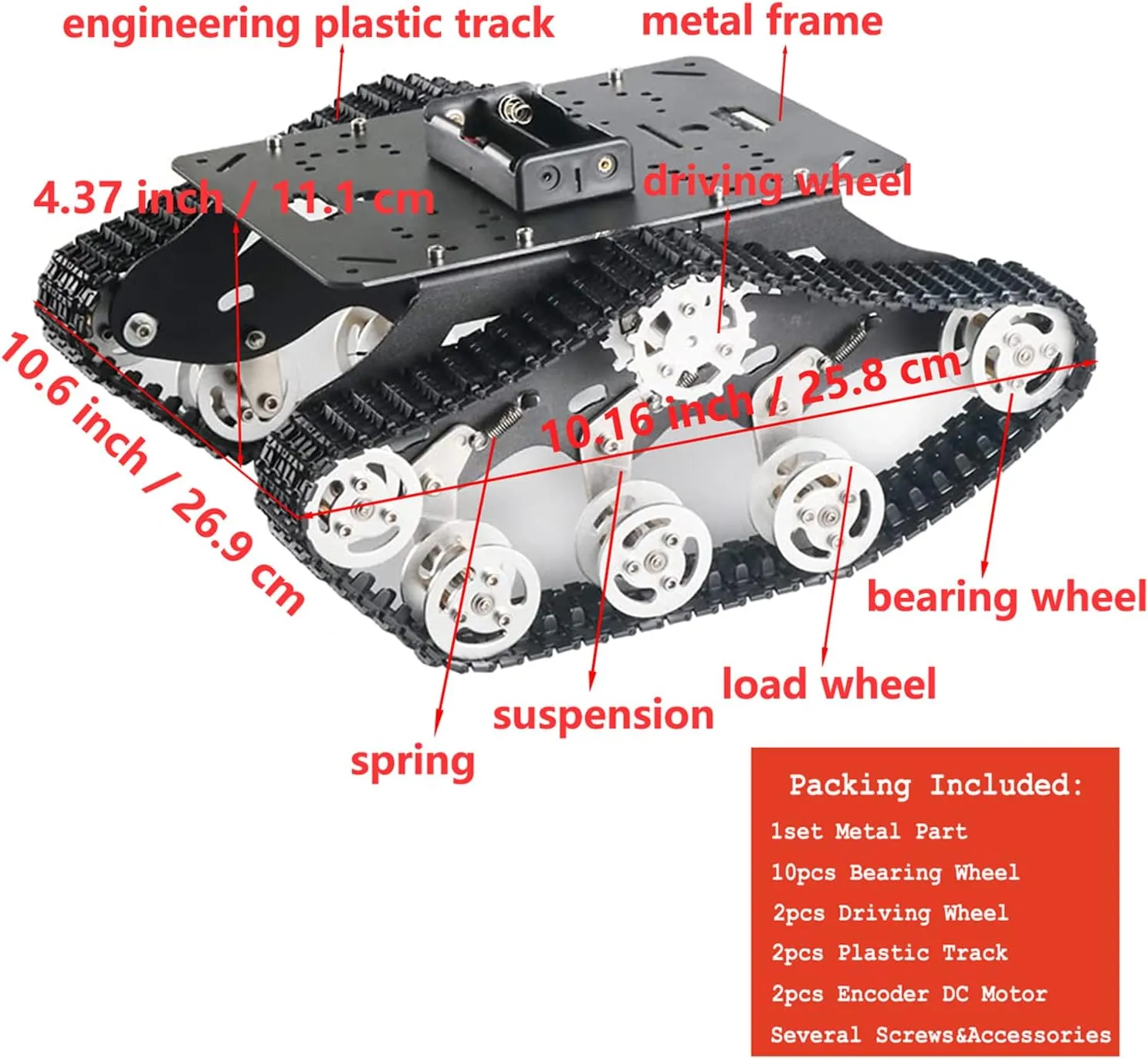

- Size: about 269*258*111mm/ 10.6*10.16*4.37 in (length * width * height)
- Designed load: 8kg/17.64lb
- Independent shock absorption system
Motor Parameters
- Name: 25mm gear motor
- Output speed: 150±10%rpm
- No_load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated current: 1200mA (Max)
- Noise: 56dB
- Working voltage: 9-12V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size:M3.0
- Dia. Of Shaft phi 4mm, D3.5
Encoder Parameters
- Type: AB-phase incremental Hall encoder
- Line speed: 150 (measured by reducer output shaft)
- Supply voltage: 5V
- Interface type: PH2.0 (standard motor cable)
Shipping List
- Metal part: 1set
- Bearing wheel: 10pcs
- Driving wheel: 2pcs
- Plastic track: 2pcs
- Encoder DC motor: 2pcs
- Screws kit: 1set
- Others: several
