- Line tap for copper, aluminum, ACSR, or compact conductors
- Bendable tabs secure both run and tap conductors
- Prefilled with joint compound to prevent corrosion
- Aluminum construction minimizes galvanic corrosion
- RoHS compliant for environmental safety

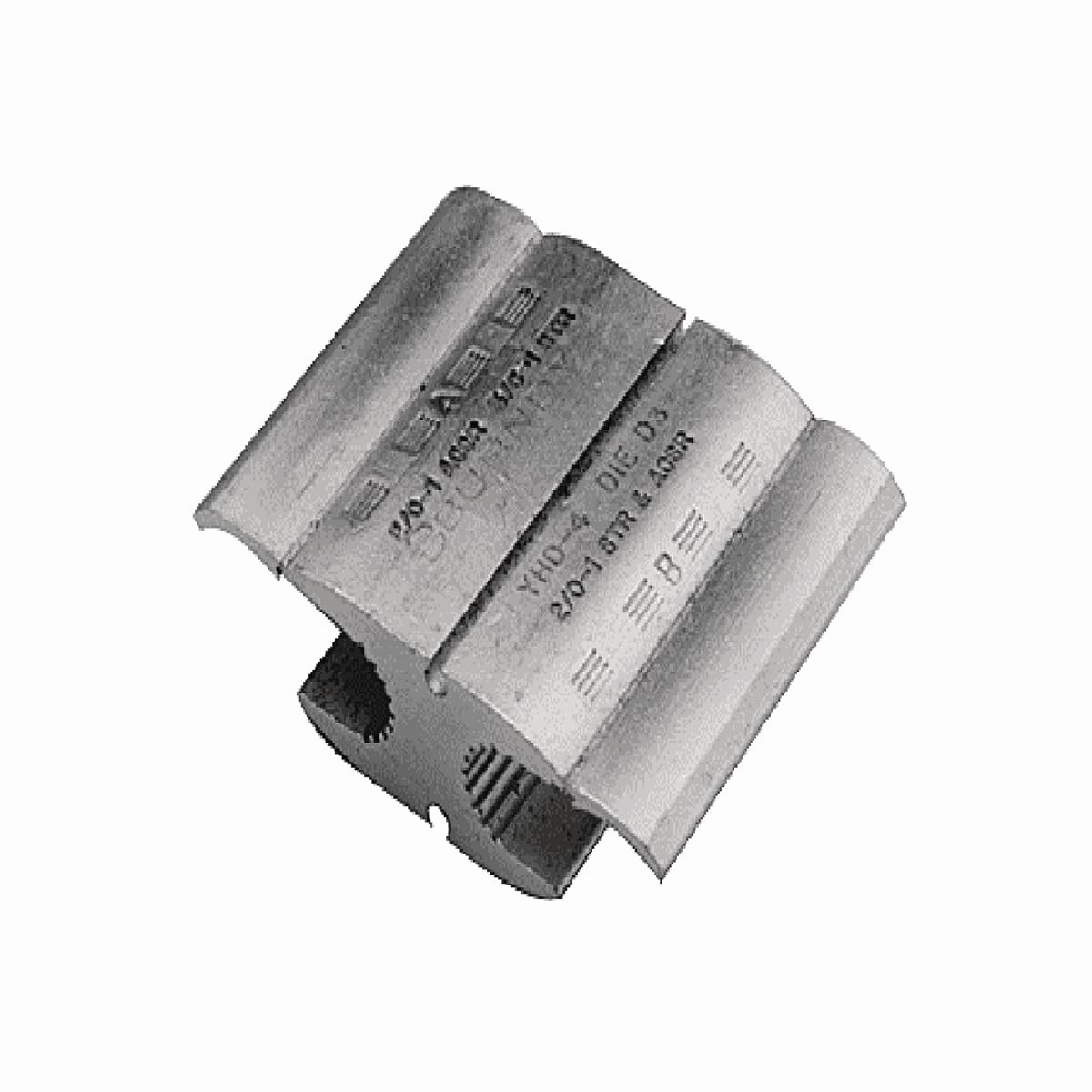

The Burndy YHO-1 LOKTAP connector is an aluminum line tap measuring 1.11 x 1.25 x 0.67 inches (H x L x W) that is suitable for use with a range of conductors. This tap can be installed by hand tool or Burndy's Hydraulic 7 Connector Program. Bendable tabs secure both run and tap conductors, and the tap is prefilled with joint compound to prevent corrosion. This line tap is Restriction of Hazardous Substances (RoHS) compliant for environmental safety. It is suitable for a wide range of industrial and commercial electrical applications.
Specifications
Dimensions*1.11 x 1.25 x 0.67 inches (H x L x W)ACSR Compact Tap Range#6 to 1 AWGACSR Tap Size Range#6 (6/1) to 2 (7/1) AWGACSR Run Size Range#6 (6/1) to 2 (7/1) AWGACSR Compact Run Size Range#6 to 1 AWGCopper Tap Range#6 to 1 AWGCopper Solid Tap Range#6 to 2 AWGAluminum Run Size Range#6 to 1 AWGAluminum Tap Size Range#6 to 1 AWGStandards metRoHS compliant*H is height, the vertical distance from bottom to top; L is length, the horizontal distance from left to right; W is width, the horizontal distance from front to back
.Burndy manufactures cable connection and management products. The company, founded in 1924, is headquartered in Manchester, NH.
- Package Dimensions : 10.4 x 4.8 x 2 inches; 1.75 Pounds
- Date First Available : April 11, 2013
- Manufacturer : Burndy
