- 【Carb Spacer Specification】#2696 Edelbrock Square-bore Carb to Spread-bore Manifold Adapter, Square bore to Quadrajet and Thermo-Quad manifolds Adapter; 0.850" Thickness; Adapter Style: Individual Venturi Ports
- 【Fitment】This edelbrock carburetor adapter plate will allow you to use an Edelbrock square-bore carburetor on a stock Q-Jet or Thermo-Quad intake manifold with a spread-bore flange; The Edelbrock 2696 carburetor adapter is designed to allow installation of the Edelbrock Performer Series carburetor on vehicles with the OEM spread-bore intake manifold (typically GM vehicles that were originally equipped with the Rochester Quadra jet carburetor)
- 【Advantage】The Edelbrock Four-Hole Square-Bore to Spread-Bore Carburetor Adapter allows proper installation of carburetor to manifold. It mounts the Edelbrock square-bore carburetors to stock Quadra jet and Thermo-Quad manifolds. It is designed to replace the original equipment unit. It allows the use of almost any carburetor on almost any intake, saving the hassle and expense of purchasing all new components when changing carburetors or intakes
- 【Advantage 】This Manifold Adapter #2696 helpes with increased intake manifold pressure at idle and also improves horsepower and torque through the entire rpm range and responds much better than 750 Ed did It could be used for many vehicles update such as Dodge, Chevy, GM, GMC, Ford

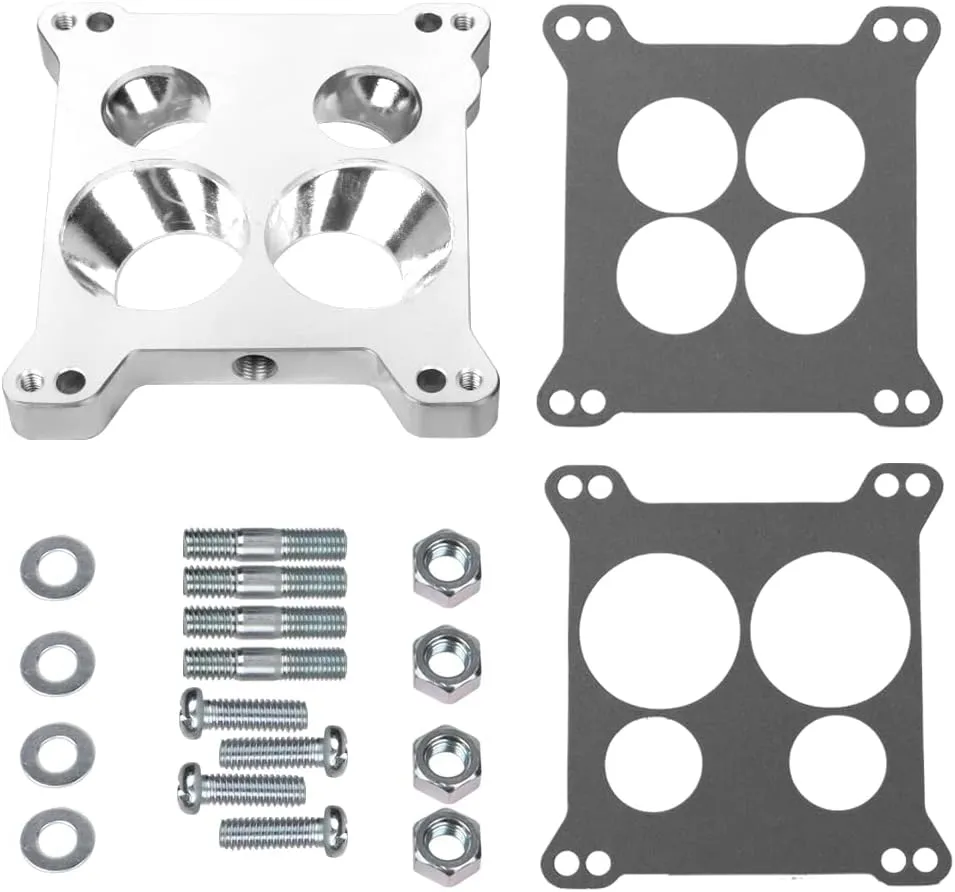

- 【Packge Include】Kits include 1 x Aluminum Mounting Hardware; 2 x Flange Gaskets; 4 x screws to bolt adapter to intake ，4x studs and nuts to bolt carb to adapter as pictures shown; #2696 is emissions legal when used with carburetor #1400 on a 1980 and older non-feedback GM vehicles powered by a V8 gasoline engine
Purchase Note：
The carb adapter will raise the carburetor by over 3/4” and some air cleaners will require additional spacers for carburetor
clearance, especially on carbs with electric chokes. The total height (carb spacer plus air cleaner spacer) must be calculated and
hood clearance checked before proceeding with your installation. Check air cleaner-to-hood clearance by placing several large clay
posts at various points on top of your air cleaner, then close the hood to compress the posts. Measure the thickness of the clay posts
to ensure that adequate clearance exists.
Specification:
Carburetor Adapter Plate Model or Series: Square Bore Spread Bore
Carburetor Adapter Style: Individual Ports
Carburetor Adapter Material: Aluminum
Carburetor Adapter Finish: Natural
Carburetor Adapter Height: 0.850"
Carburetor Base Flange: Square Bore
Intake Manifold Flange: Spread Bore
Includes Mounting Hardware: Yes
Includes Flange Gaskets: Yes
Other Note: This kit will also work on manifolds designed for the Thermo-Quad carburetor. It contains the necessary items to adapt the EPS carb to the OEM manifold. #2696 is emissions legal when used with carburetor #1400 on a 1980 and older non-feedback GM vehicles powered by a V8 gasoline engine.
