- Multiple Features
- Developed for robot lovers
- Multiple Control Methods
- Self-learning, drawing, imitating, etc
- It would bring more methods of play and study, perfect for realizing your innovative programming ideas and coding study
Description :

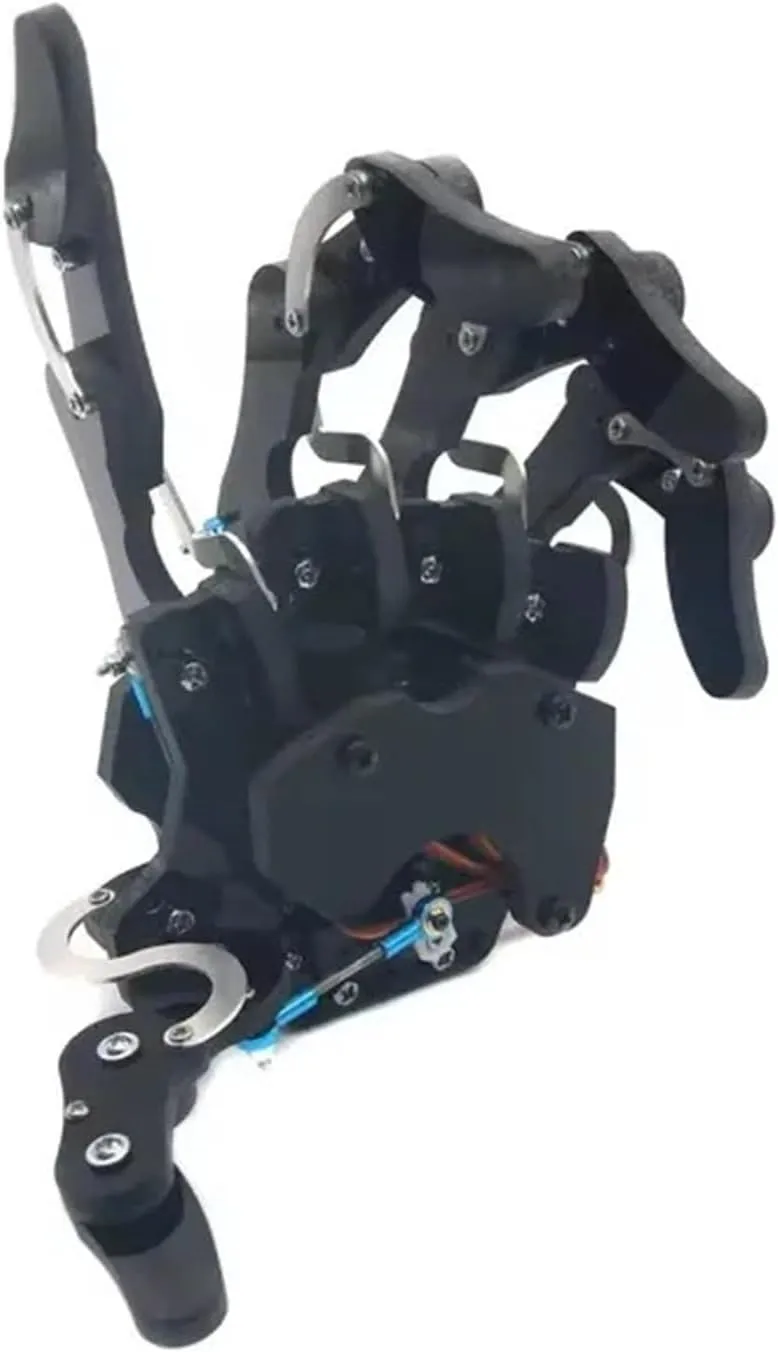

1. It used 5 servos to drive, each finger can move flexible.
Servo voltage: 5-6V
Control protocal: 0.5ms-2.5ms for servo 0-180 degree. Note no breaking bounds&no blocking
The servo brown red orange lines correspond to negative, positive, and signal lines respectively.
It's structure with occasional updates, may have small differences with picture, kind prevail.
Material: Black acrylic
Weight:289g
2.Size chart:(MM)
3.Package list:
1*finished product palm controer
Note:
Beware of steering gear locked-rotor.
To control this palm you also need controller and power,please prepare by yourself,thank you.

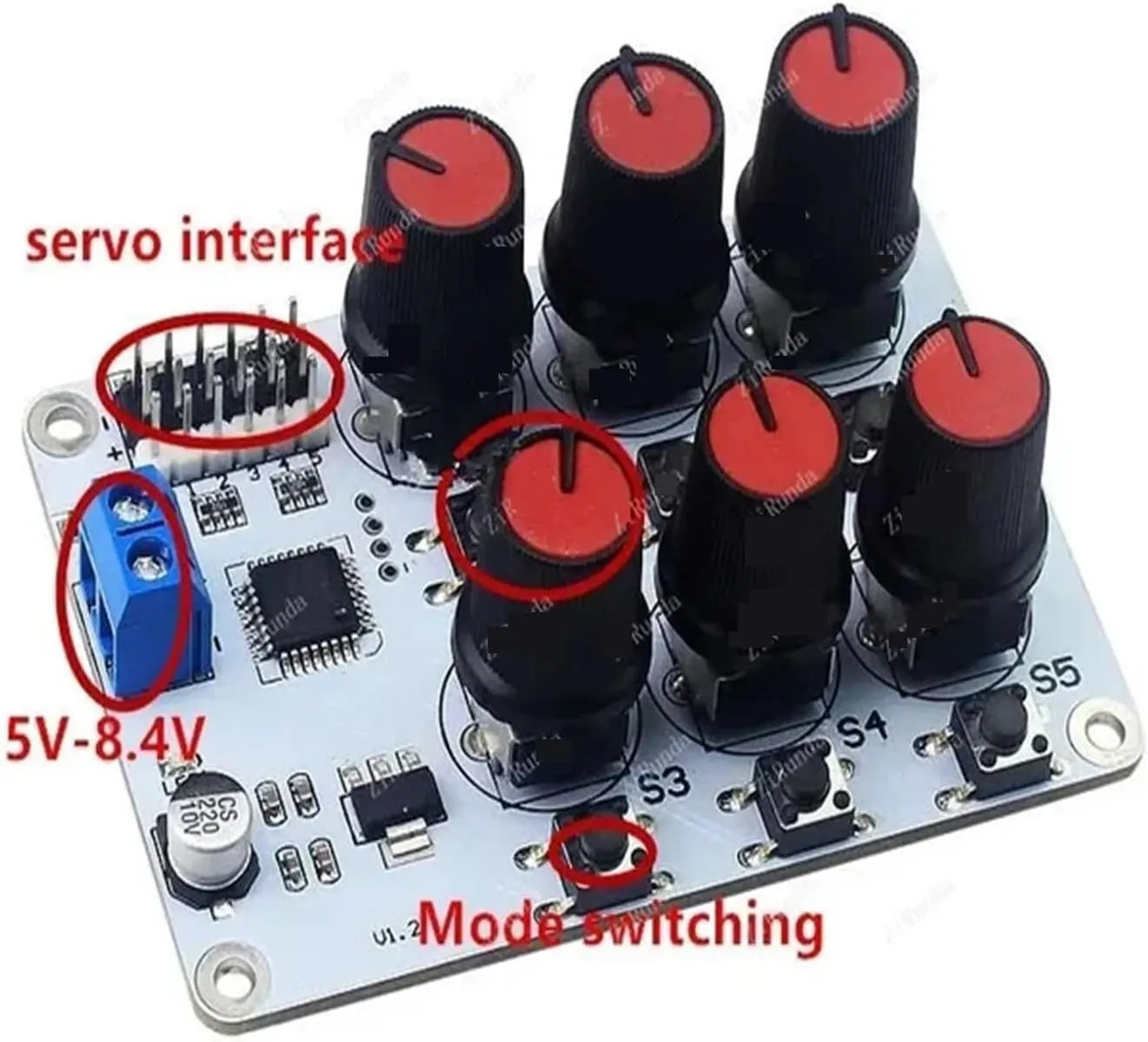

Specifications:
Adopts high precision potentiometer, could control 6 servo, realtime synchro 1: 1 control
0, 1, 2 three channels with overcurrent protection
Each knob with an button, press it, servo turn to center place, and knob could not control servo rotation, press it again, release the locking status,the knob can continue to control the servo.
Very convenient to wiring
Size: 76mm * 53mm
Weight: 37g
Wiring instructions:
: Connect 5 ~ 8.4V power supply.
-: Connect the power supply negative.
In general, the power supply based on the servo voltage.
